The Ultimate Guide to Sump Pump Installation

Sump Pump InstallationWater damage is a homeowner’s nightmare, especially in basements and crawl spaces prone to flooding. A reliable sump pump system is a vital investment that can save your home from costly repairs and maintain its structural integrity. In this comprehensive guide, we’ll explore everything you need to know about sump pump installation, including the types of sump pumps, tools required, installation steps, and maintenance tips to keep your system running smoothly.

What Is a Sump Pump?

A sump pump is a device designed to remove accumulated water from a sump basin, typically located in the basement or lowest part of a home. The system prevents basement flooding and water damage by automatically pumping water away from the foundation to a designated drainage area such as a storm drain, dry well, or municipal sewer.

There are two main types of sump pumps: pedestal and submersible. A pedestal sump pump has a motor mounted above the sump pit and is easier to service, while a submersible pump sits inside the pit and is more discreet and quieter. Your choice will depend on the size of your pit, the amount of water you expect to deal with, and your budget.

Why You Need Sump Pump Installation

Homes located in areas with high water tables, frequent rainstorms, or poor soil drainage are at high risk of flooding. Installing a sump pump is a proactive measure that offers several benefits:

• Prevents water damage and mold growth
• Protects your home’s foundation from erosion
• Preserves personal belongings stored in basements
• Enhances property value and home insurance eligibility

Proper sump pump installation ensures that the system works efficiently and reliably when you need it most.

Tools and Materials Needed for Sump Pump Installation

Before beginning the installation process, make sure you have all the necessary tools and materials:

• Sump pump (pedestal or submersible)
• Sump basin (liner)
• Gravel
• PVC pipe and fittings
• Check valve
• Drill with hole saw bit
• Shovel or jackhammer
• Level
• Concrete mix
• Silicone or waterproof sealant
• Wrench and pipe cutter
• Safety gear (gloves, goggles, etc.)

Step-by-Step Guide to Sump Pump Installation

Step 1: Choose the Right Location

Pick a location in your basement where water tends to accumulate. It should be near a power outlet and allow easy discharge pipe routing. Avoid placing it near finished walls or where it may interfere with your foundation.

Step 2: Dig the Sump Pit

Mark a circle about 10 inches wider than the sump basin. Use a jackhammer or shovel to dig down to the required depth, typically 2 feet. Make sure the pit is level, and add a 3- to 4-inch layer of gravel at the bottom to improve drainage.

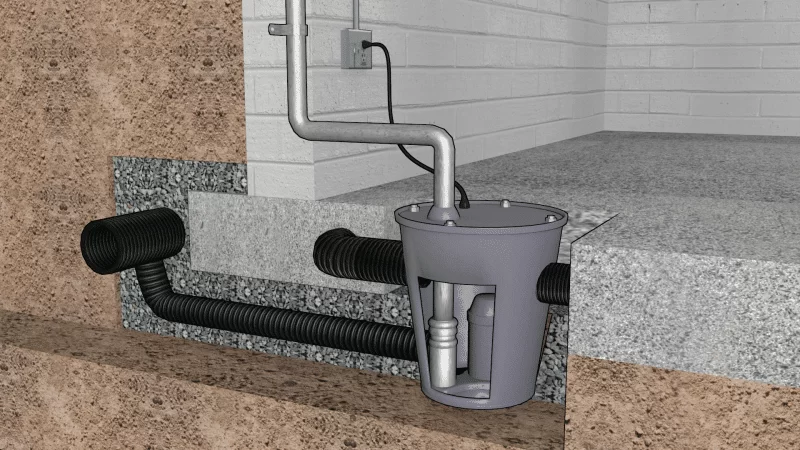

Step 3: Insert the Sump Basin

Place the sump basin into the pit. Ensure it is level and sits slightly below the floor surface. Fill the space around the basin with gravel, leaving 2 inches from the top. Seal the top edge with concrete to secure it in place.

Step 4: Install the Sump Pump

Place the sump pump into the basin. If using a pedestal pump, ensure the motor stays above water level. Connect a check valve to the pump’s outlet pipe to prevent backflow, then attach PVC piping to guide water out of your home.

Step 5: Route the Discharge Pipe

Drill a hole through the rim joist for the discharge pipe. Extend the pipe outside the home, sloping downward to direct water at least 10 feet away from the foundation. Secure it using brackets and apply sealant around the hole to prevent air and water leaks.

Step 6: Connect the Power Source

Plug the pump into a GFCI (Ground Fault Circuit Interrupter) outlet. Avoid using extension cords. If possible, consider installing a battery backup system in case of power failure during heavy storms.

Step 7: Test the Pump

Fill the basin with water using a bucket to test the pump’s float switch and ensure it turns on and discharges water properly. If everything runs smoothly, your sump pump installation is complete.

Common Installation Mistakes to Avoid

• Failing to include a check valve, leading to pump cycling
• Using improper discharge pipe angles, causing backflow
• Placing the sump pit in a low-traffic area without checking water flow
• Not sealing exterior pipe openings, inviting pests and moisture
• Forgetting to test the system after installation

Avoiding these mistakes can ensure that your sump pump installation lasts for years with minimal maintenance.

Maintenance Tips for Longevity

Once your sump pump is installed, regular maintenance will extend its life and improve performance:

• Test it quarterly by pouring water into the basin
• Clean the pump and basin annually to remove dirt and debris
• Check the float switch for smooth movement
• Inspect the discharge line for clogs or freezing, especially in winter
• Replace backup batteries every 2-3 years

Proper maintenance ensures that your sump pump activates reliably during storms and flooding.

Signs You May Need a New Sump Pump

Even with the best care, sump pumps wear out over time. Common signs of failure include:

• Strange noises or excessive vibration
• Constant running or failure to turn on
• Visible rust or damage
• Frequent tripping of the breaker
• Water backing up into the basement

If you notice any of these signs, it may be time to replace the unit or call a professional for inspection.

When to Hire a Professional

While many homeowners can manage sump pump installation as a DIY project, hiring a licensed plumber or waterproofing expert is recommended if:

• Your basement has a complex layout
• You’re unfamiliar with local building codes
• You need to route pipes through finished walls
• You’re installing a battery backup or water-powered pump

Professionals can ensure that the installation is code-compliant and that your home is protected long-term.

Conclusion

Installing a sump pump is a smart move for any homeowner looking to protect their property from water damage. Whether you live in a flood-prone area or just want peace of mind during heavy rains, a properly executed sump pump installation can keep your basement dry and your foundation secure. With the right tools, a bit of preparation, and regular maintenance, you can ensure your sump pump system provides reliable protection for years to come.
